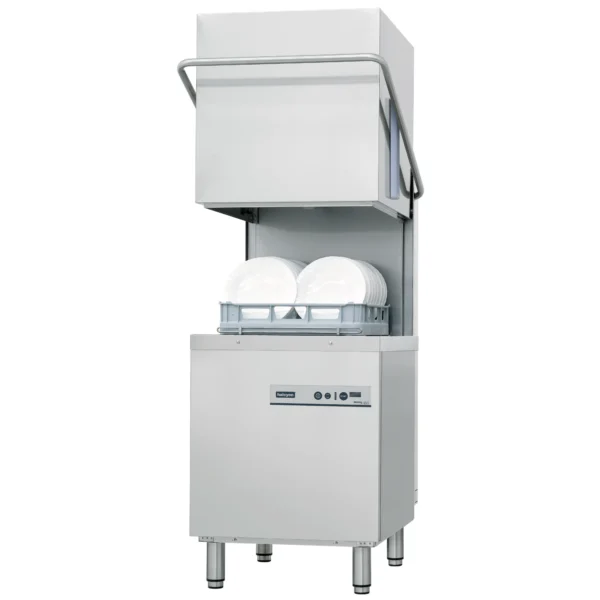

Amika AMH80D Glasswasher
£4,790.00
No more bending down to load glasses into your glasswasher. The Halcyon Amika AMH80D glasswasher is a pass-through pumped drain glasswasher. It also has a larger usable heigh than most under counter glasswashers.
The Halcyon Amika AMH80D glasswasher is a great choice for bars and pubs that have a dedicated glass wash area. This hood type pass through glasswasher can be connected to tabling and / or a sink to allow pre rinsing and also easy loading at waste height. Two cycle times give a choice of wash times between 90 and 180 seconds when running at optimum conditions. Free delivery available with this glasswasher.
- 1 year warranty
- Increased usable height
- Three button bright LED display with soft touch controls and alarms menu
- Supplied as a glasswasher
- Accurate detergent & rinse aid peristaltic dosing pumps with dosing setup by fascia controls
- Easy clean parallel wash and rinse arm assembly
- Gravity drain pump version available
- Optional surface scrap tray filters
- Supplied with one open cup/glass rack, one pegged plate rack & cutlery insert as standard
The height of the glasswasher can be adjusted with the adjustable legs from 1500 to 1560mm with the hood closed and 1980 to 2040 with the hood open.
The Halcyon Amika AMH80D glasswasher can also be used as a dishwasher. It is supplied with both plate and glass baskets. Extra baskets can be requested at purchase.
For help and advice please contact our office.
| AMH80D | Dishwasher |
|---|---|
| Width x Depth x Height mm | 640 x 745 x 1500mm (inc feet) |
| Feet Height | 165mm to 225mm |
| Basket size | 500 x 500mm |
| Maximum useable height | 435mm |
| Door Opening | 460mm |
| Cycle times | 90/180 Seconds |
| Water consumption per cycle | 2.5 Litres |
| Wash tank capacity | 15 Litres |
| Phase – Options | Single/3-Phase |
| Power – Single Phase Options | 4.5kW(20Amp),6.5kW(30Amp) |
| Power – Three Phase | 6.5kW(16Amp) |
| Detergent pump | Peristaltic – Non Timed |
| Rinse aid pump | Peristaltic – Non Timed |
| Drain pump | Yes |
| Breaktank | No |
| Water supply pressure | 2 to 4 Bar |
| Body Construction | Single Skin |
| Door/Hood Construction | Single Skin |
| Scrap Trays | No |
| Internal Rinse Booster Pump | N/A |
| Number Of Cycles | 2 |
| Total Maximum Load(as supplied) | 6.5kW(30A) – Single Phase |
| Dimensions | 745 × 640 × 1500 mm |
|---|---|
| Power | 20 Amp, 30 Amp, 3 Phase |
